5X Max Signal Booster Kit

The SureCall 5X Max signal booster kit is designed to handle any type of signal environment, minimize signal loss along the cable, and provide maximum coverage inside with +16 dBm of downlink power.

It features the new SureIQ technology, which allows the amplifier to adjust its boosting power down to 0, so it can handle any strength of outside signal without overloading.

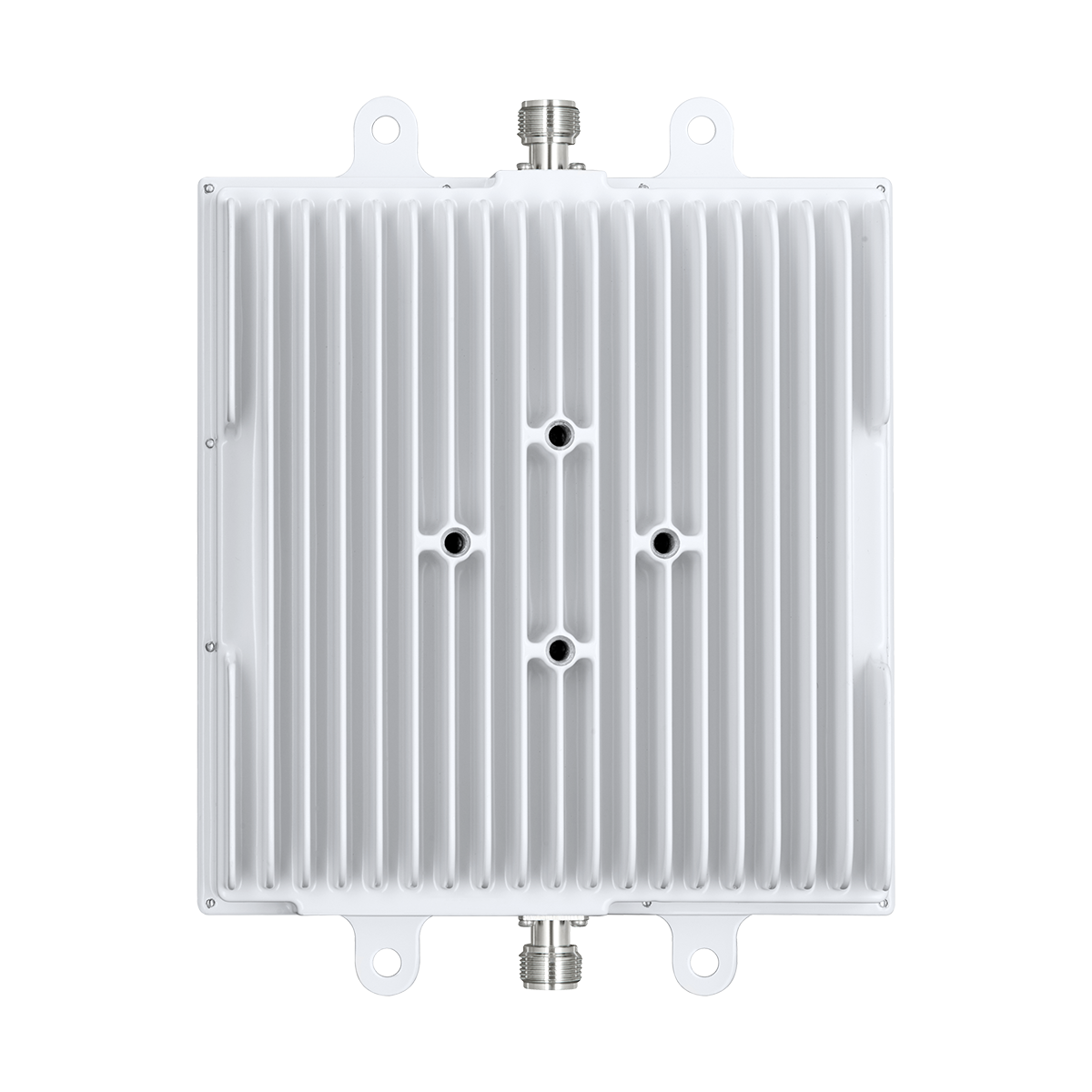

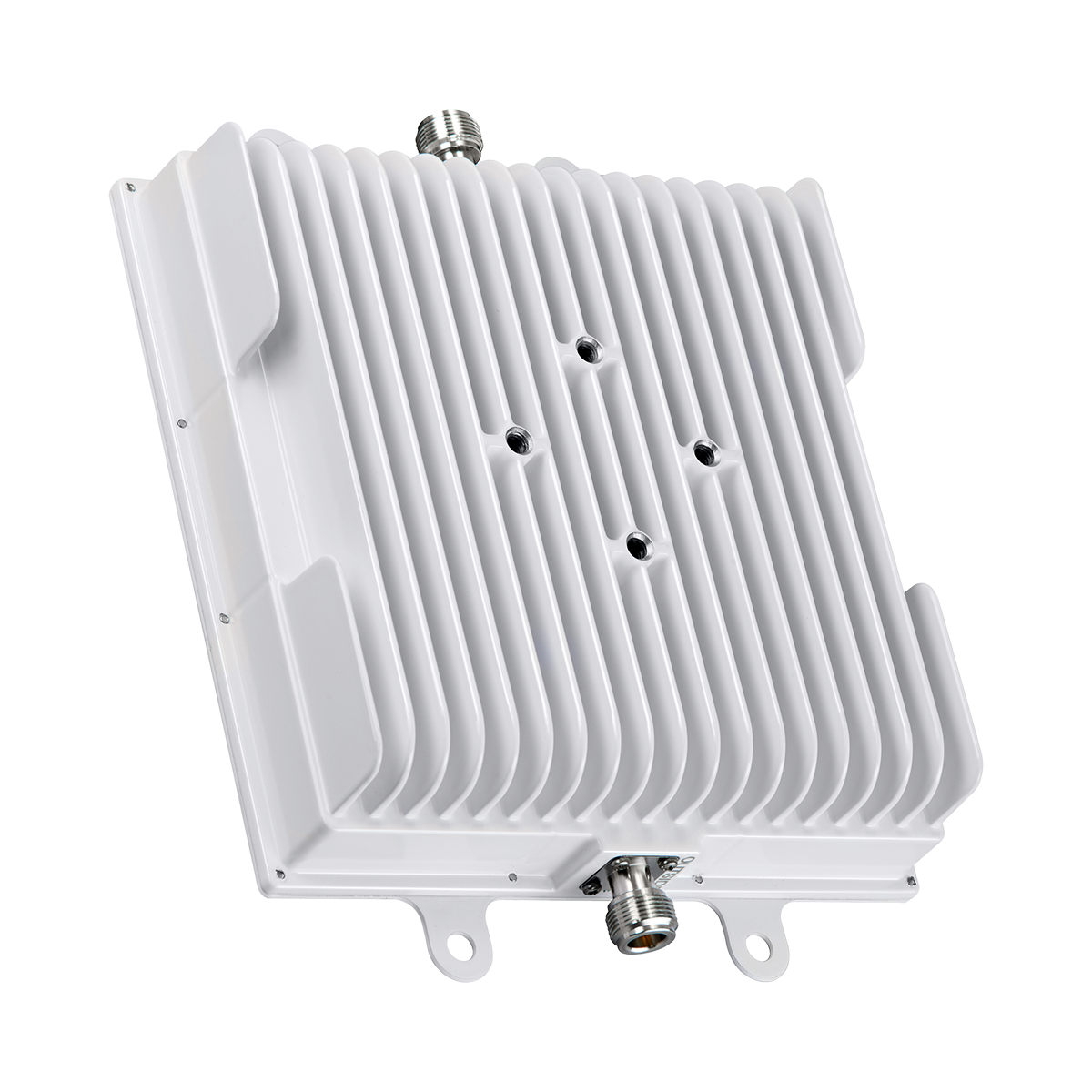

The 5X Max is built around SureCall's new ERT technology, which boosts the cell signal at the point that it's captured rather than after a long cable run, so it is an ideal solution for weak outside signal environments.

This solution can also be monitored in the cloud, so you can ensure maximum uptime and be notified in case of a problem with your repeater system.

It will boost all of the networks from the major carriers in North America, so it's the perfect solution for any large home or business.

Outside Antenna

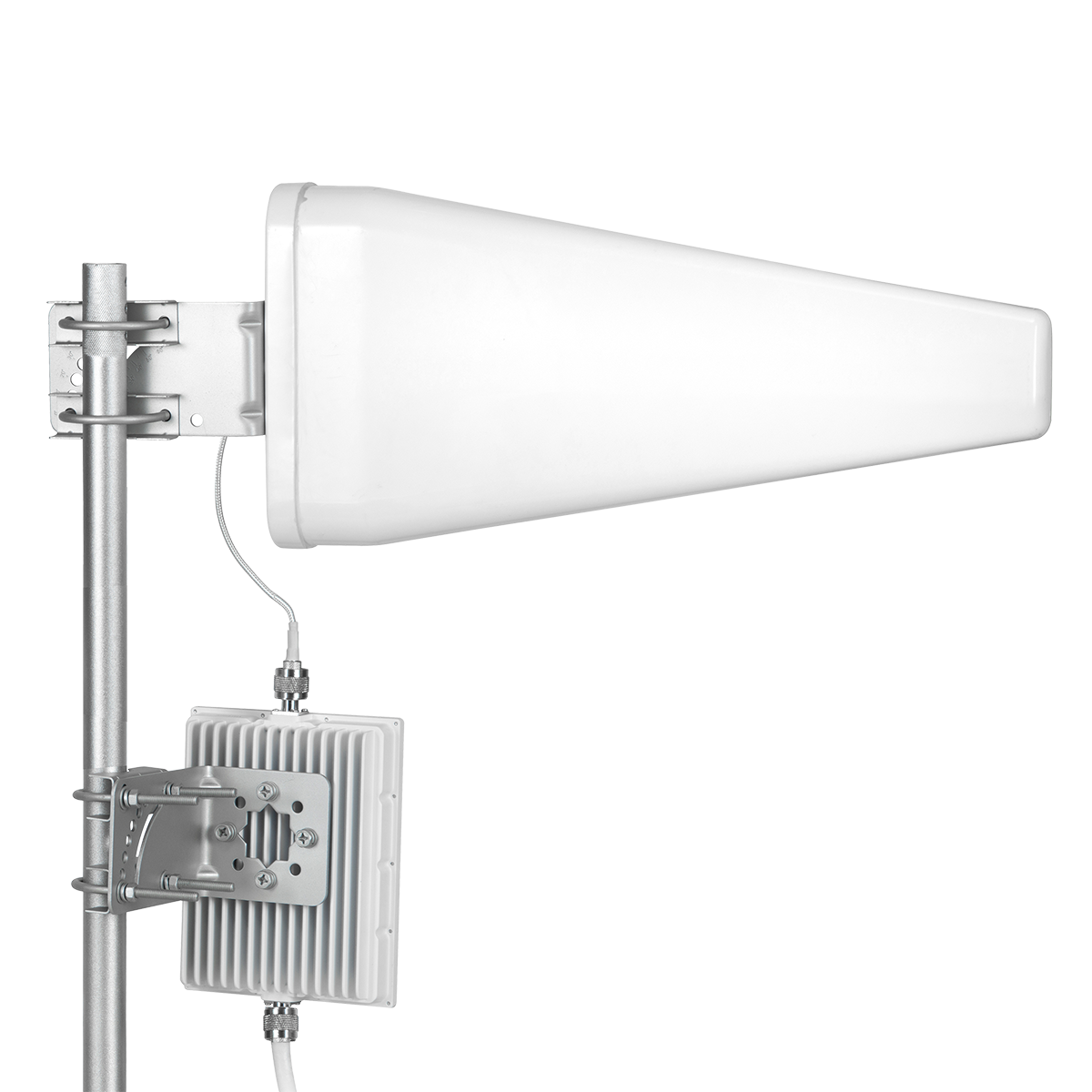

• Yagi Outside Antenna: This antenna has 10 dB of gain and must be aimed and can cover about 75 degrees of the horizon in one direction. Since a directional antenna can only cover a portion of the horizon, you may only be able to cover the carrier(s) with towers in the direction that the yagi antenna is pointing. The advantage is that because they are aimed, they're much more powerful so you'll get more coverage area inside of the building with a directional antenna.

Inside Antenna Options

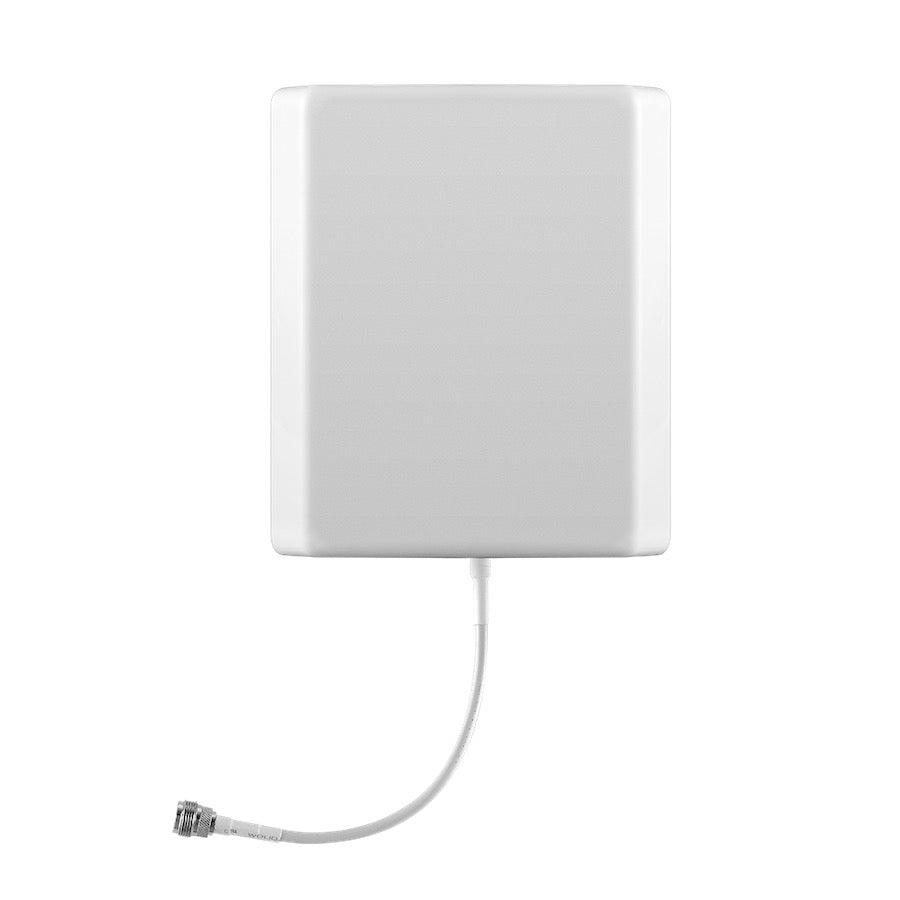

• 2 Panel Inside Antennas: This antenna has 10 dB of gain and is generally mounted on the ceiling aimed downwards in the center of the space that needs boosted signal, but can also be laid face down on the floor of an attic or space above the ceiling, again in the center of the space that needs boosted signal, and it will broadcast boosted signal through the floor to the space below. Finally, panel antennas can be mounted on a wall and broadcast boosted signal across a space.

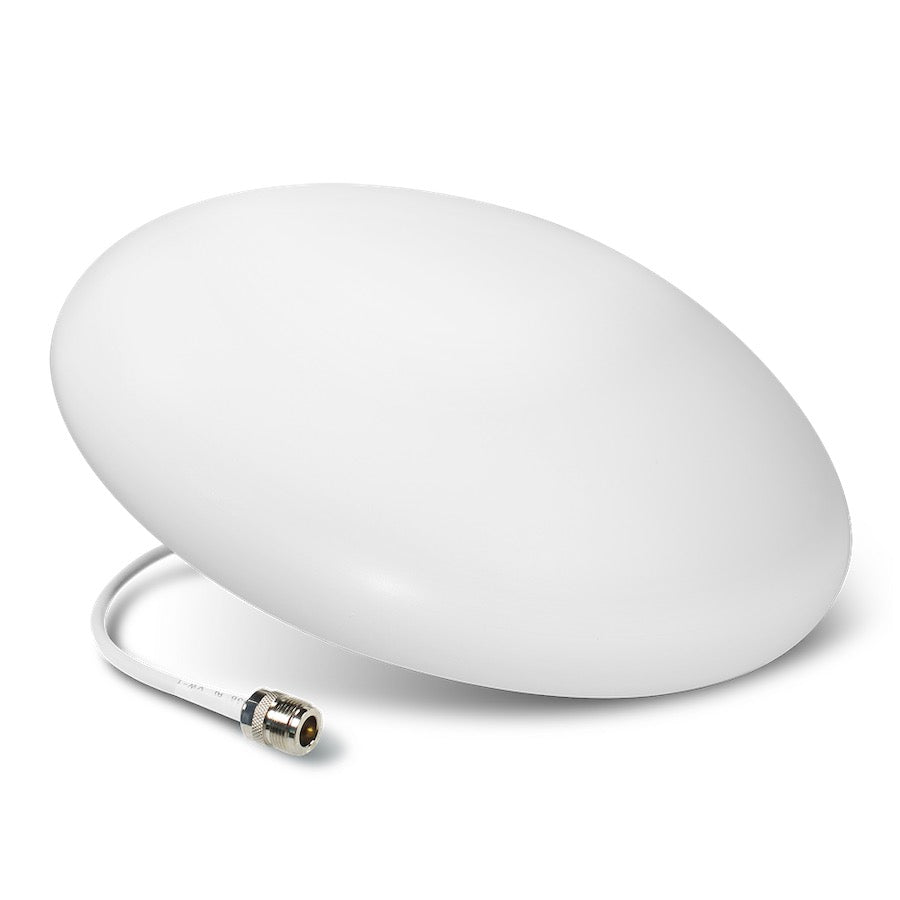

• 2 Ultra Thin Dome Inside Antennas: This antenna has up to 7.5 dB of gain and a very low profile when mounted to a ceiling compared to the standard dome antenna. You must have access to the backside of the ceiling in order to run a cable to it, so it is an ideal antenna for a drop ceiling panel. Dome antennas typically will only cover a single floor but can possibly cover multiple floors depending on the floor construction in between.

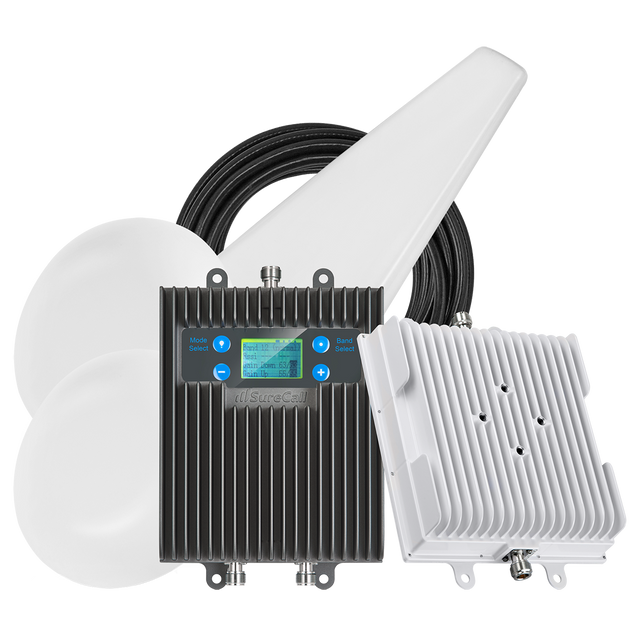

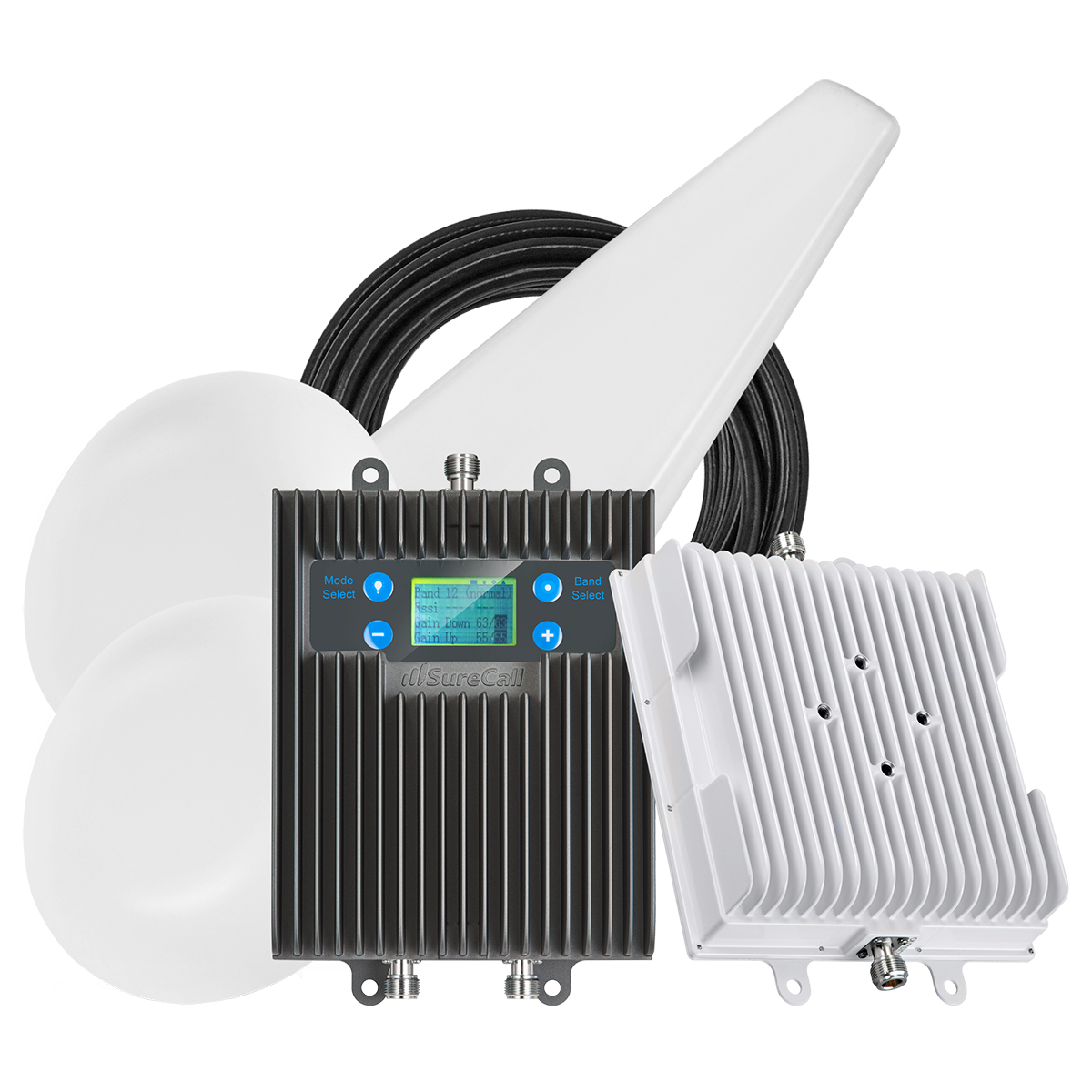

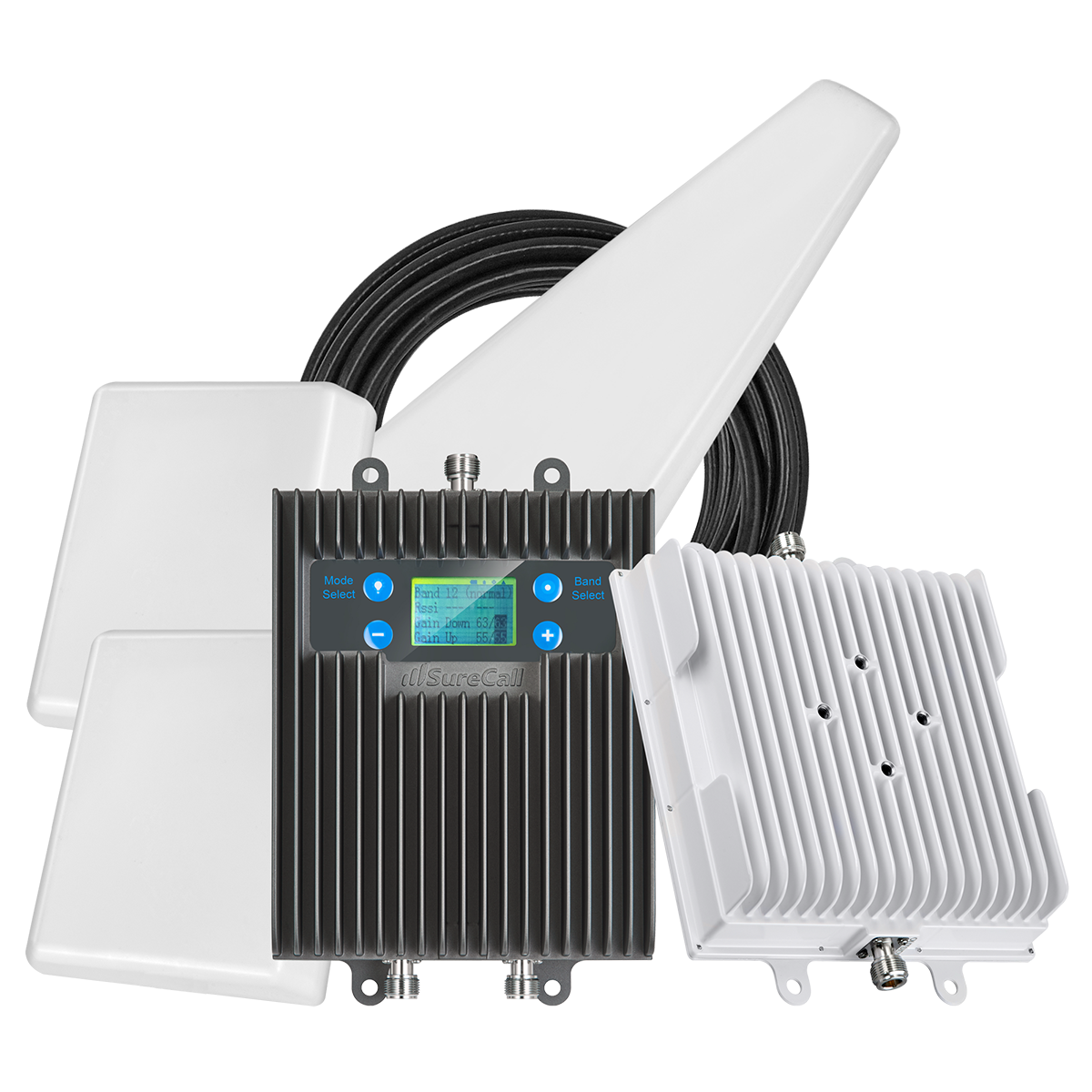

Kit Includes

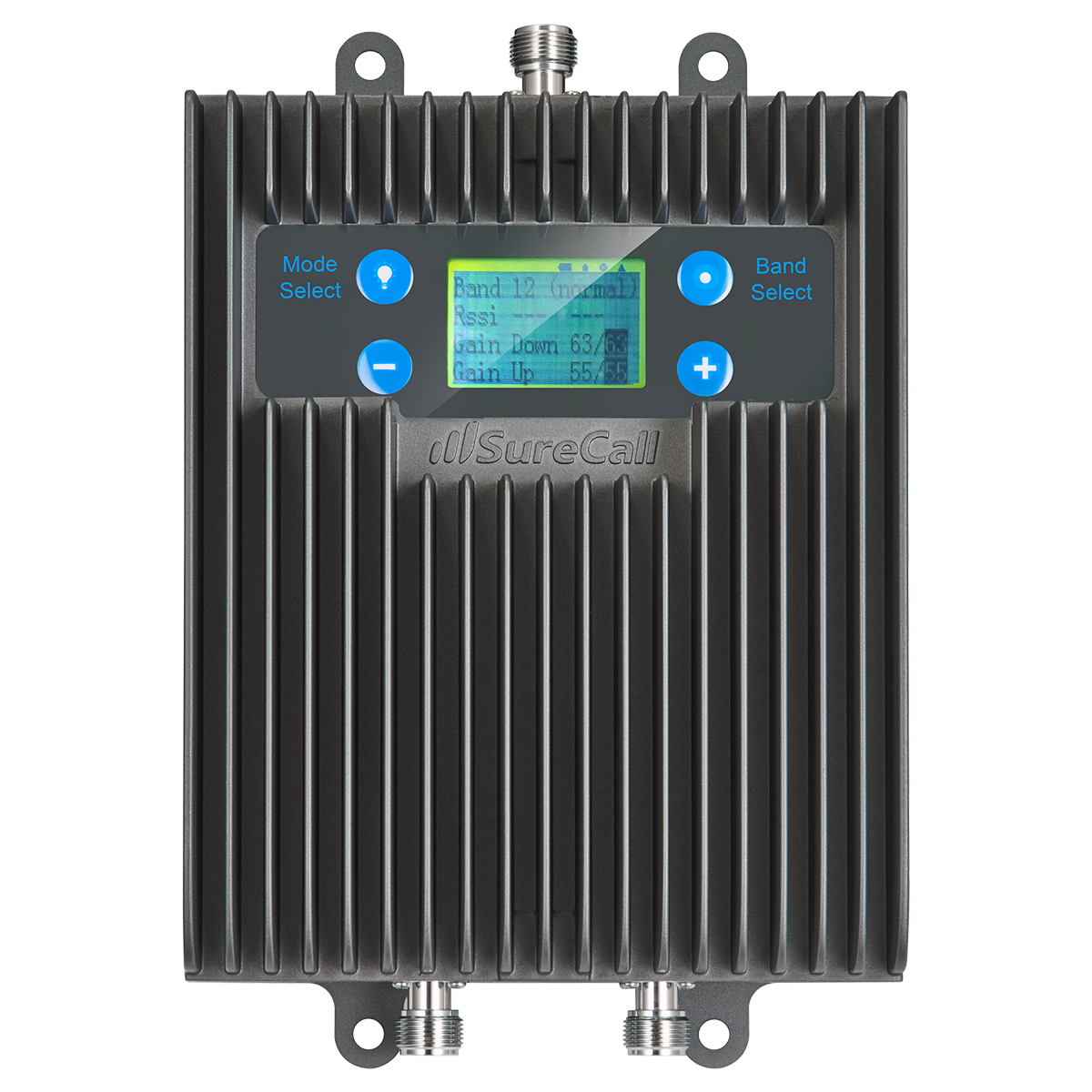

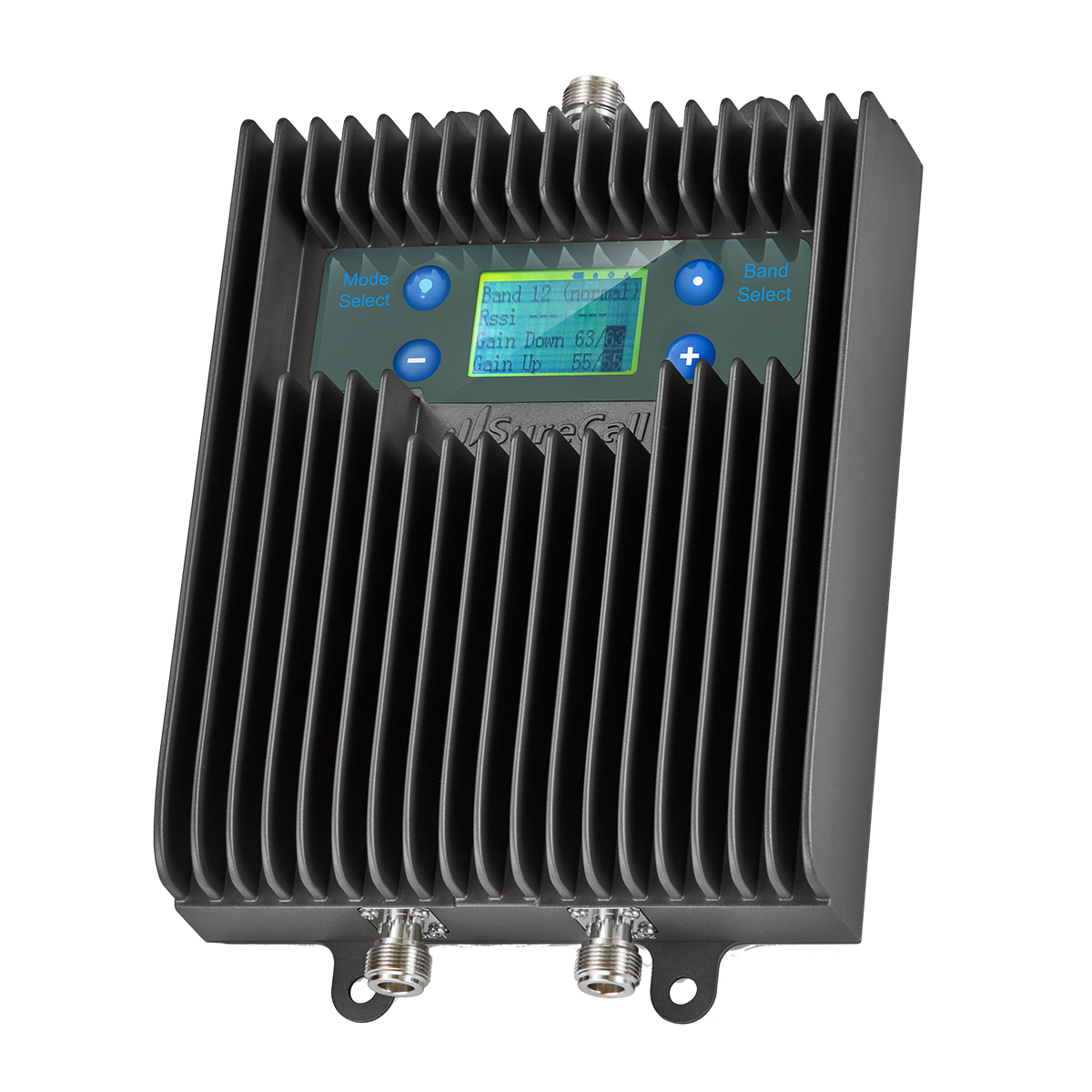

• 5X Max Signal Amplifiers
• Power Supply for 5X Max Inside Amplifier

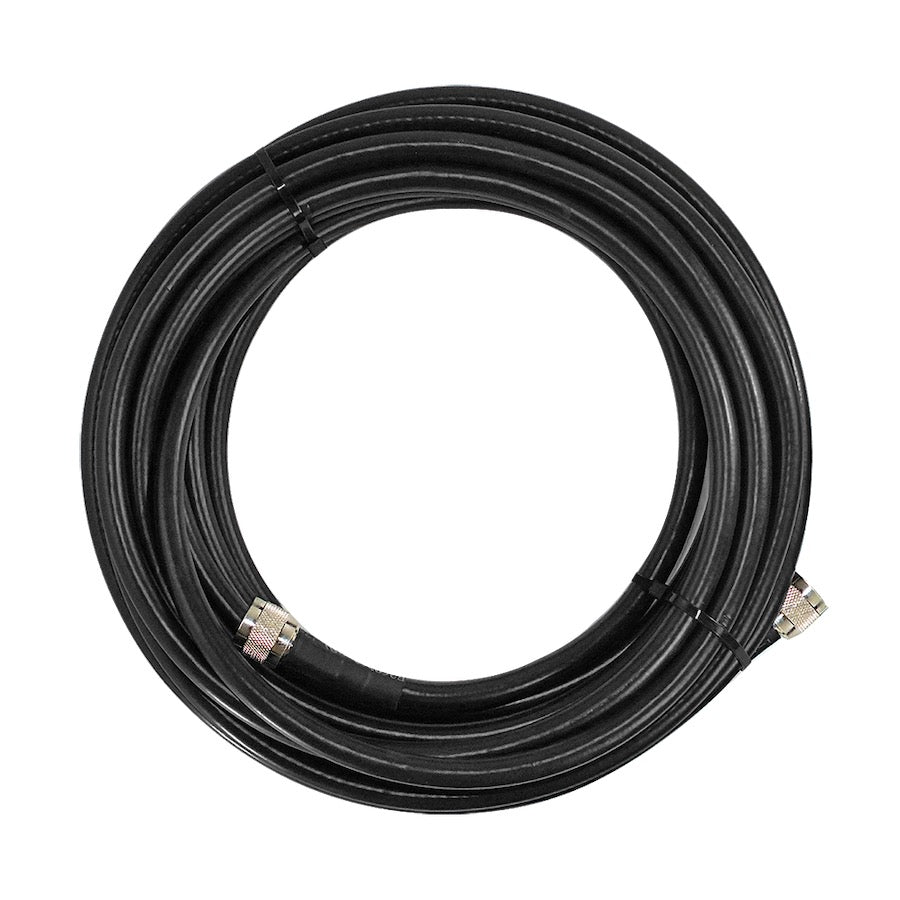

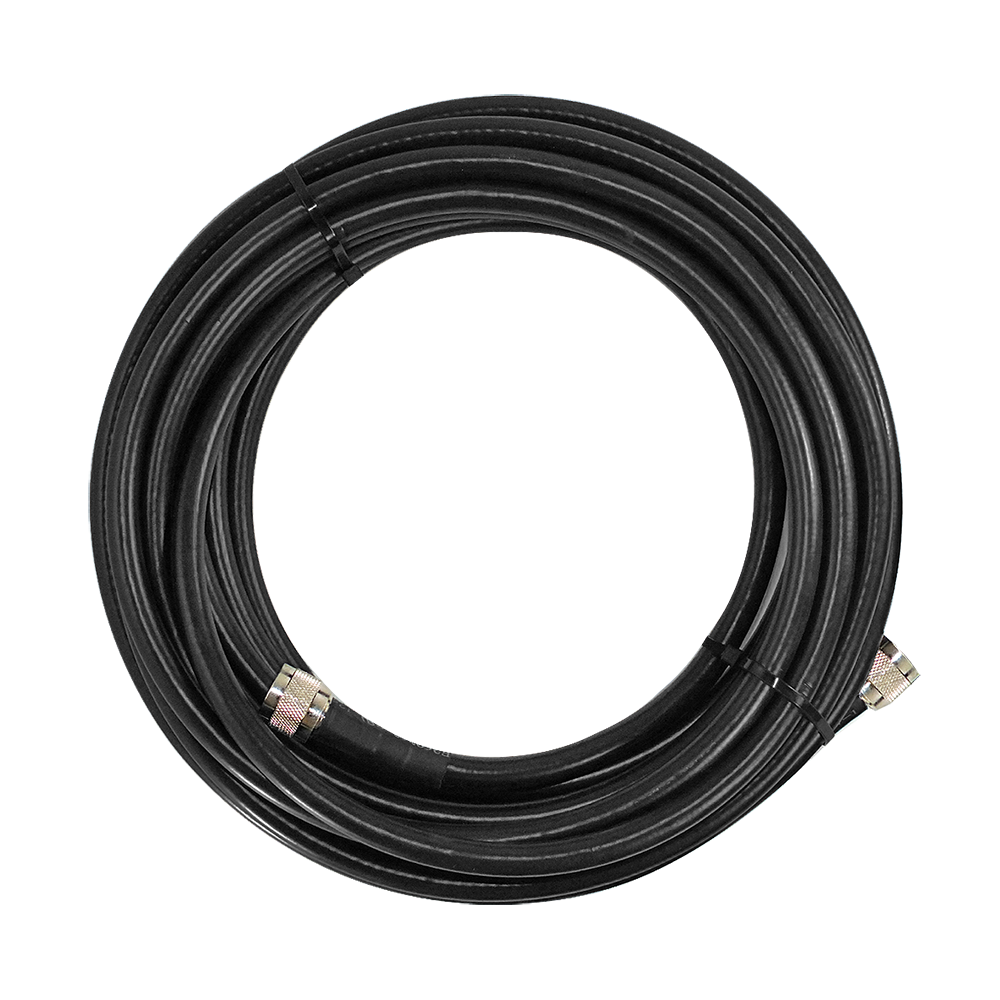

• 3 x 100 ft of 400 Series Cable
• Yagi Directional Outside Antenna (50 ohm)
• 2 x Panel Inside Antenna Option (50 ohm)
• 2 x Ultra Thin Dome Antenna Option (50 ohm)
• Instruction Manual

Warranty

Your purchase is covered by our 60-day money-back guarantee, so you can try it risk-free, and our friendly, US-based technical support team is standing by to assist with anything you need. Your equipment is also covered by a 3-year manufacturer warranty, for extra peace of mind.

Estimated Inside Coverage

The strength of your existing outside signal, measured in the location where you plan to mount the outside antenna, has a direct impact on the amount of inside coverage you'll get from a signal booster. The table below shows how much coverage you may get depending on your outside signal strength:

Coverage with a Yagi Outside Antenna

Please Note: It is important to remember that there are many factors that impact the size of the inside coverage area, so actual results may vary from these estimates.

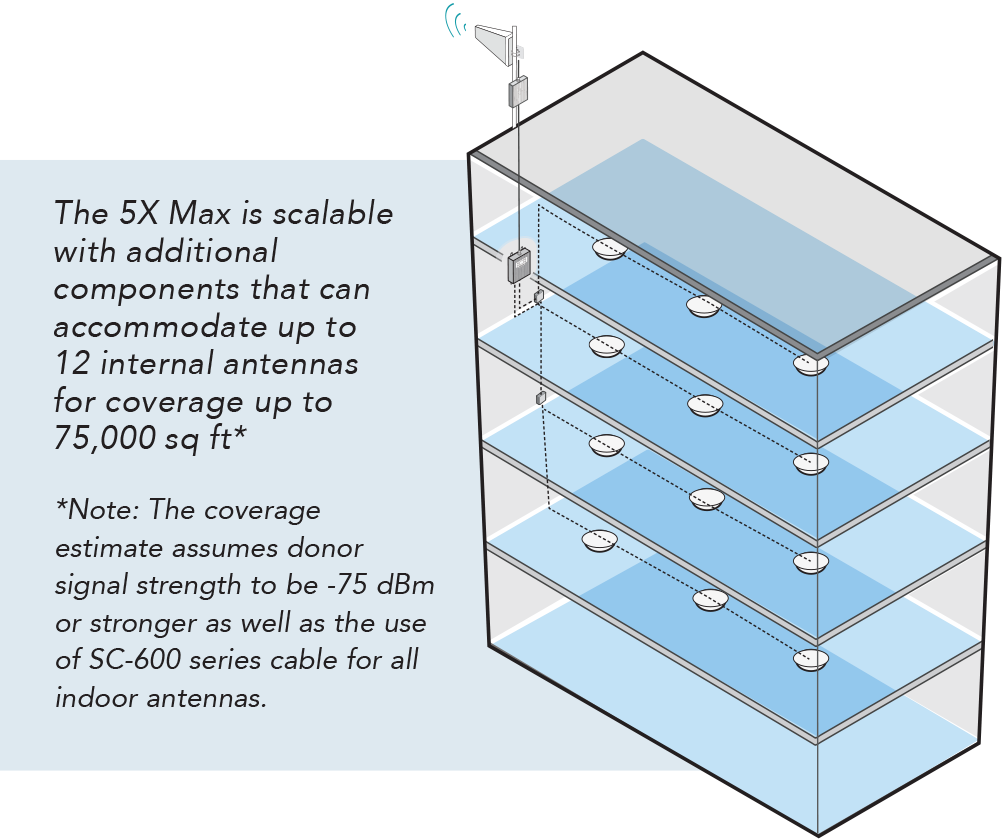

Additional Coverage

If you need more coverage than the SureCall 5X Max will provide due to a weak outside signal, then please contact us and we can discuss using multiple amplifiers to provide the necessary coverage that you need.

This signal booster has been designed to work with all cell phones and all carriers in the United States, Canada and Mexico, as well as carriers from some other countries in Latin America, South America and Australia.

Please Note: This signal booster will not work in most European, Asian, and African countries, as the frequencies used there are different than those boosted by this equipment.

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider. WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.

Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
